Introduction

The non heat drying machine uses the principle of pressure swing adsorption (PSA) and the method of non heat regeneration to dry compressed air through a dual tower circulating adsorption structure. One tower adsorbs moisture from the air under a certain pressure, while the other tower uses a small amount of dried compressed air for regeneration under reduced pressure . After a certain period of time, the two towers switch between each other to achieve.

Features

● stable outlet pressure dew

● The large flow diffuser can ensure equal distribution of airflow through the adsorption bed and eliminate channel flow

● The tower body is designed to prevent the fluidization of the adsorbent

● Upflow drying allows water and pollutants to be discharged from the gas by gravity

●Convenient sewage discharge

●Stainless stell diffuser that can be cleaned/Support filter screen

Standard configuration

● Remote Control/ Short Range Control

●Modbus RTU communication protocol

Option

● Schneider/Siemens electronic control components

● Pipeline stainless steel material/Stainless steel material for adsorption twoer

● Mainstream communication protocols such as modbus tcp/ip, profinet ,ethercat, etc

Performance parameter

●Working pressure: 0.7-1.0Mpa

● Ambient temperature:5-45℃

● Intake temperature: ≤38℃

● Standard pressure dew point :-40℃

● Average regeneration gas consumption:14%

● Average pressure drop: 0.012Mpa

● Electrical level : IP55

● Noise level: ≤85 dB(A)

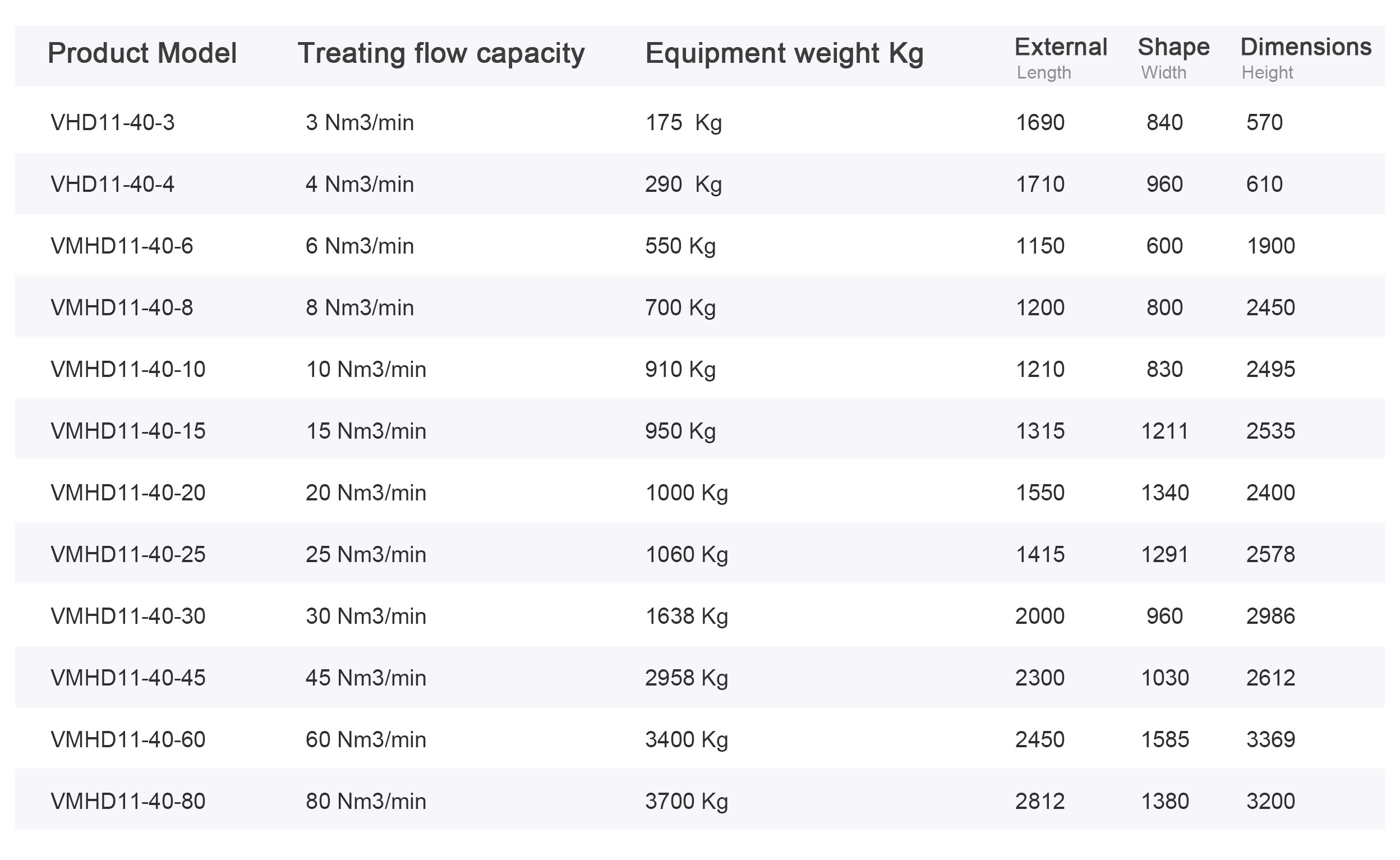

Specification
